Description

UV330 is a lightweight, portable and easy-to-operate mini flashlight for UV fluorescence detection. It adopts high-power UV LED of peak wavelength 365nm, small half-wave width, pure UV light, high light efficiency. UV intensity when close to object is as high as 481000uW/cm2. It has good visual effect and also very suitable as a small curing light source; Finger size, light, light weight of only two coins, two basic colors of black and white and support color customization; Powered by 1x AA battery and designed with a head rotary switch. This is a accurate and reliable portable tool for daily fluorescence detection and UV curing.

Mian Features：

1. High-quality 1W UV LED adapted, with small half-wave width, pure UV light and high light efficiency; Constant current chip adopted to ensure constant UV intensity, and UV intensity at 1cm distance reaches up to 481000uW/cm2.

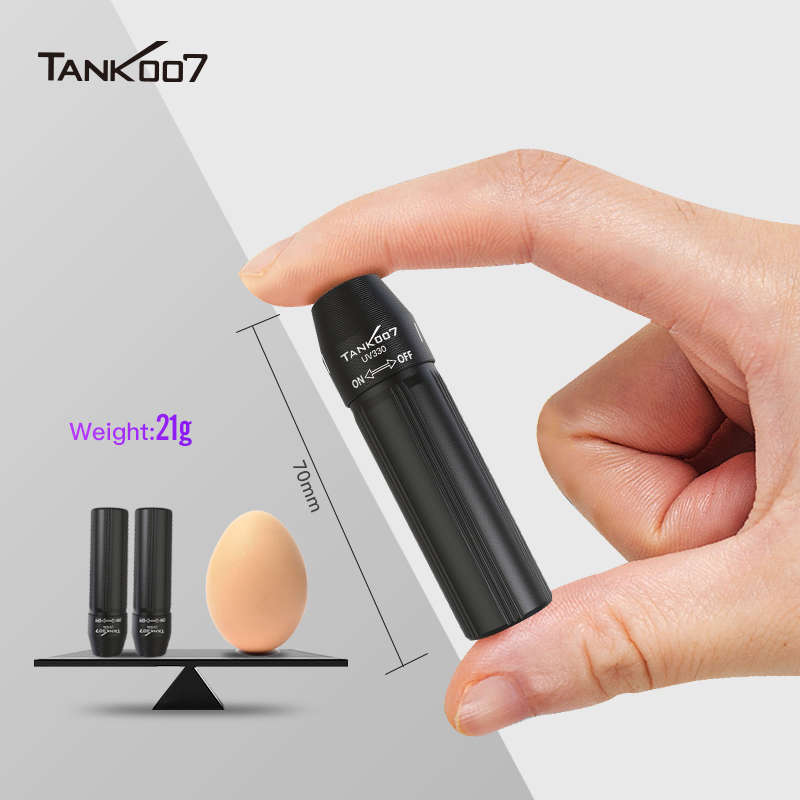

2. 7cm length, 21g weight, lightweight and portable, two basic colors of black and white and support color customization, to meet various personalized demands of EDC products;

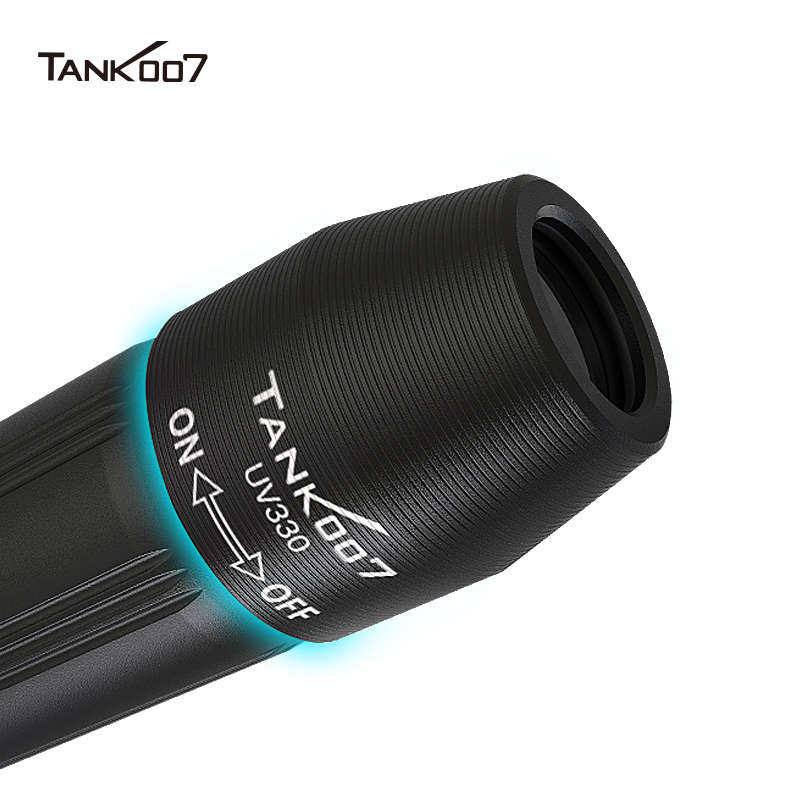

3. Rotary switch on the head, one-mode constant brightness setting, easy to operate and use, convenient and fast;

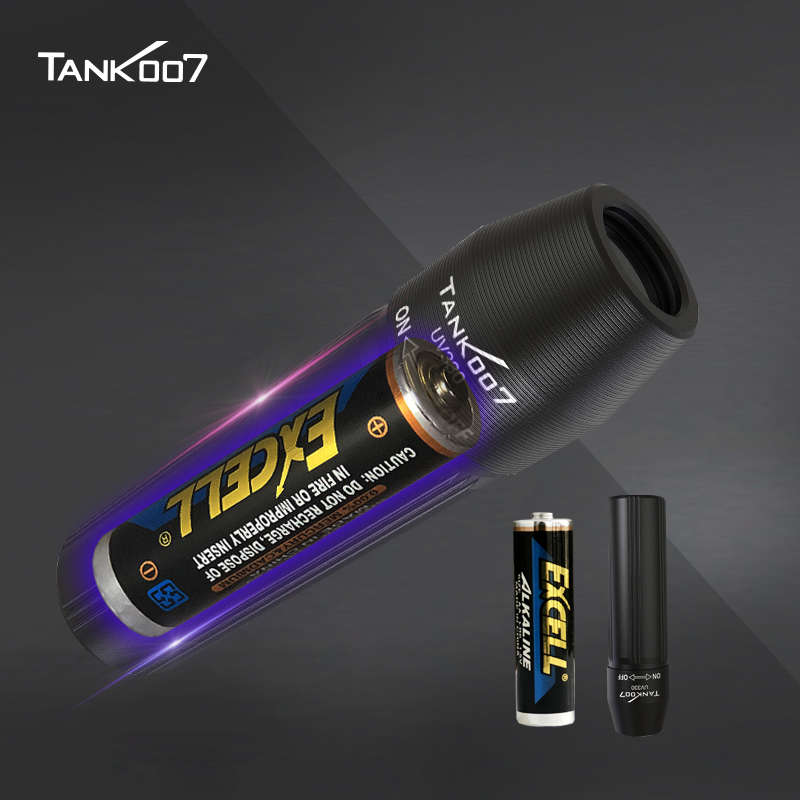

4. Powered by 1 AA carbon battery
5. Main housing of the flashlight made of aviation-grade aluminum alloy 6061 T6; Surface treated with hard anodized hard finish, sturdy and durable, 1.5m anti-drop height.

?

Technical parameter

LED：1W UV LED

Wavelength：Peak wavelength 365nm

Battery：1 AA carbon/alkaline battery or 1 AA rechargeable Ni-MH battery

UV intensity：481000uW/cm2@1cm

Material：Aviation grade aluminum 6061 T6

Switch：Head rotary switch

Mode：One mode with constant brightness

Reflector：Orange peel reflector

Weight：21g

Lens：Specialized optical lens

Size：70*19.2mm

Colour：Black; White; Support color customization

Usage scenario：Indoor use, 1.5m anti-drop height

Accessories and Packaging：1*Flashlight
