Description

K9-A5 is a high-power 365nm professional-grade ultraviolet flashlight. It adopts the imported UVLED high-power lamp beads and matches with 365nm wavelength special black lens to eliminate the interference of visible light. Mainly for UV curing (coatings, inks, glues) and scene applications that require high fluorescence reaction effects, such as fingerprint inspection, cleaning inspection (grease, bacteria, viruses and other microorganisms), oil and gas air conditioning (automotive) pipeline leak detection and non-destructive testing , etc.FEATURES:

1. Equipped with one 18650 Li-ion rechargeable battery, K9A5 is a portable high-intensity UV flashlight.
2. It adopts top-level professional UV chip from Korea of precise wavelength and 20,000 hours’ lifespan.
3. 3.UV flashlight has multiple use as below:

◆?Check the leaks for air conditioner and automobile circulatory system

◆?Mark and blood inspection, examination of crime scene.

◆?Treasure and minerals searching,?antique appraisal

◆?Ink curing and glue curing.

◆?Counterfeit and banknotes distinguishing

◆?Gas leaks inspection

◆?Fluorescent reflection of special materials

?

TECHNICAL PARAMETERS: ?

• LED SPECIFICATIONS: ???

Brand & Model: Imported from Korea,?high-power 365nm UV LED

LED Lifespan: Above 20,000 hours

UV Intensity: 59290uW/cm2@15cm，8137uW/cm2@38cm

CIRCUIT SPECIFICATIONS:

Input Voltage: 2.8-4.5V

Output Level: One mode

• BATTERY SPECIFICATIONS:

Power Source:?1*18650Rechargeable lithium battery

Burn Time:3?hours

• PHYSICAL SPECIFICATIONS:

Size(cm): 12.5(length) * 2.4(body diameter) *2.4 (head diameter)

Weight(g): 70(excluding batteries)

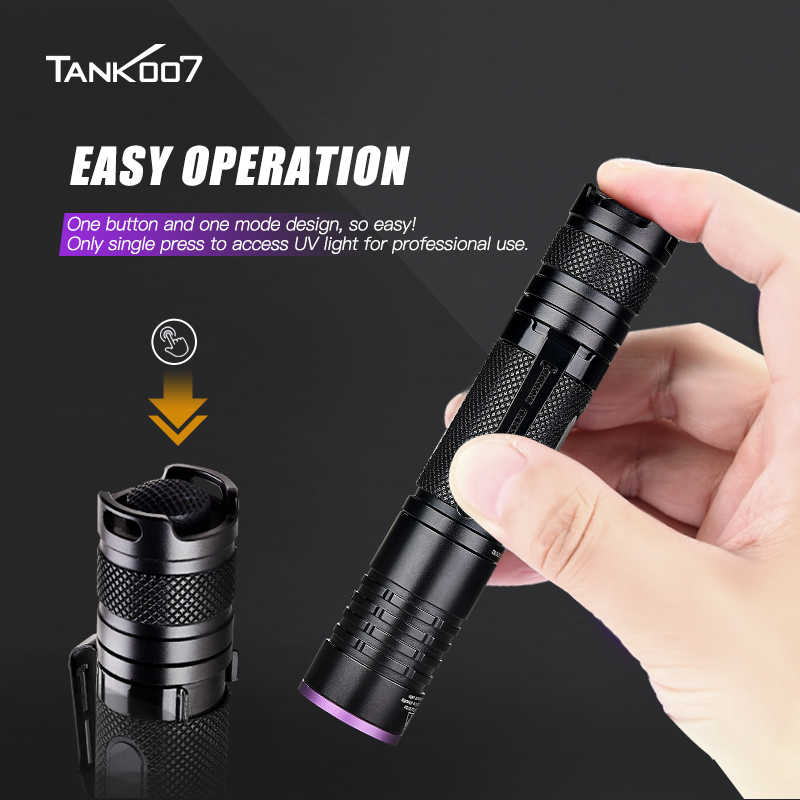

Switch:?Tail click switch

Material: Made of durable aircraft-grade aluminum?T6061

Reflector: High temperature vacuum coated aluminum mirror reflector

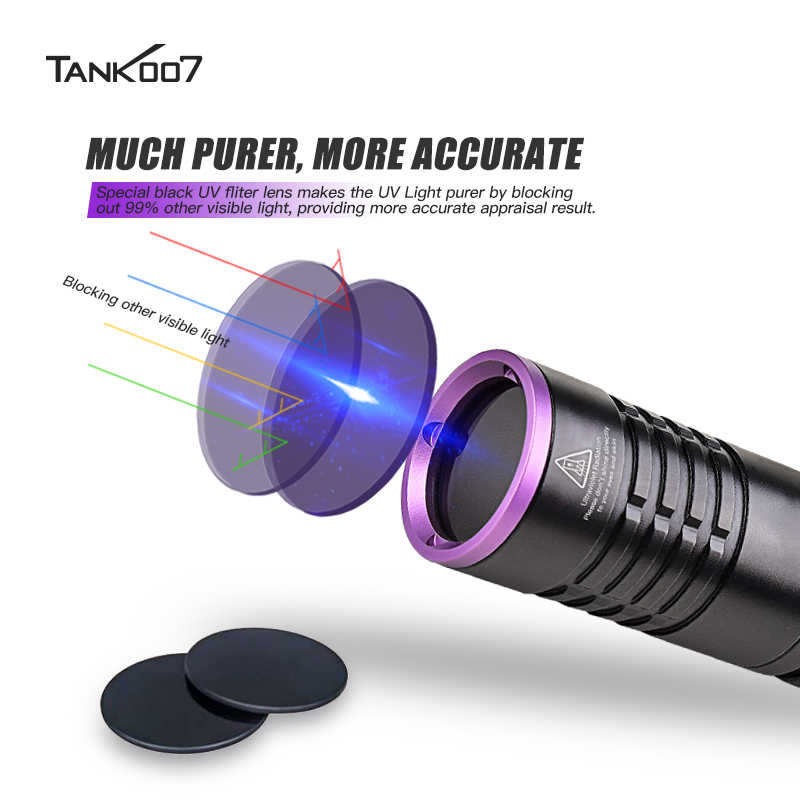

Lens: ?UV filter optical lens

Treatment:?Premium Type III hard-anodized anti-abrasive finish

Waterproof: IPX8

Anti-dropping height: 1.5 m

Color: Black

?

ACCESSORIES: ???????

◆ Flashlight
◆ Lanyard
◆ 18650 battery with USB port
◆ USB cable
◆ Gift box
