Description

【Application】

Widely used in inspection and maintenance portable lighting in oil fields, petrochemicals, electricity, metallurgy, firefighting, shipbuilding and other industries. It is also suitable for wearing on helmets and used as headlights.

【Product Features】

1. American Cree brand high-power original imported LED chips, long life, brightness up to 300LM, work light set comfortable brightness 150LM.

2. Three lighting modes: work light, high light, strobe, click the tail button to switch.

3. Humanized tail signal light, visible distance 30m. When installed on a helmet, it can be used as a safety reminder.

4. Special high-power lithium battery with overcharge, over-discharge and short-circuit protection functions.

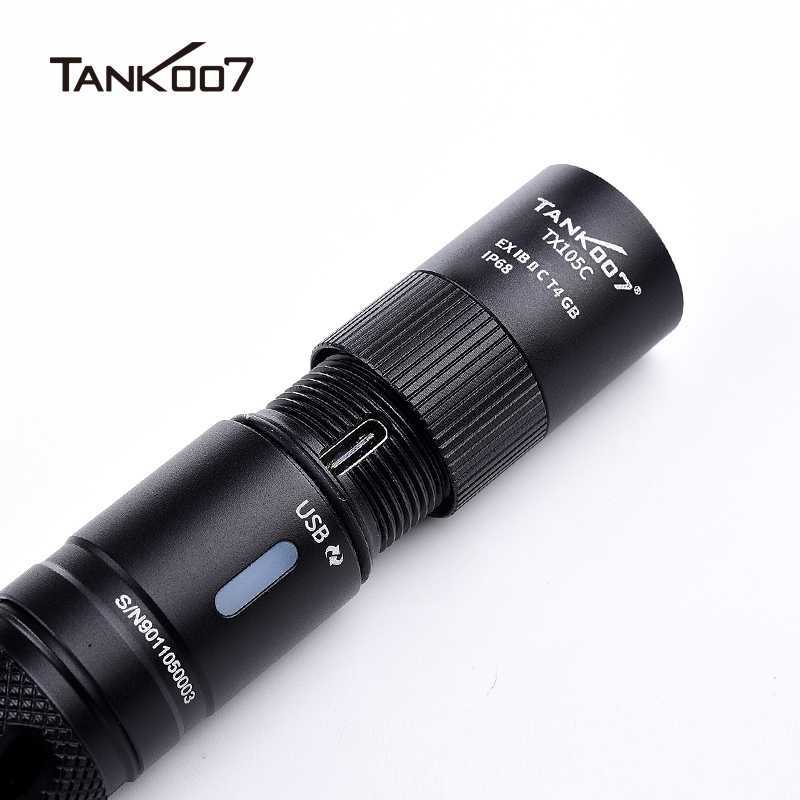

5. The charging port hidden in the head can be revealed by unscrewing it. It has a Type-C charging port, a charging voltage of 5V, and can be charged with a universal charger.

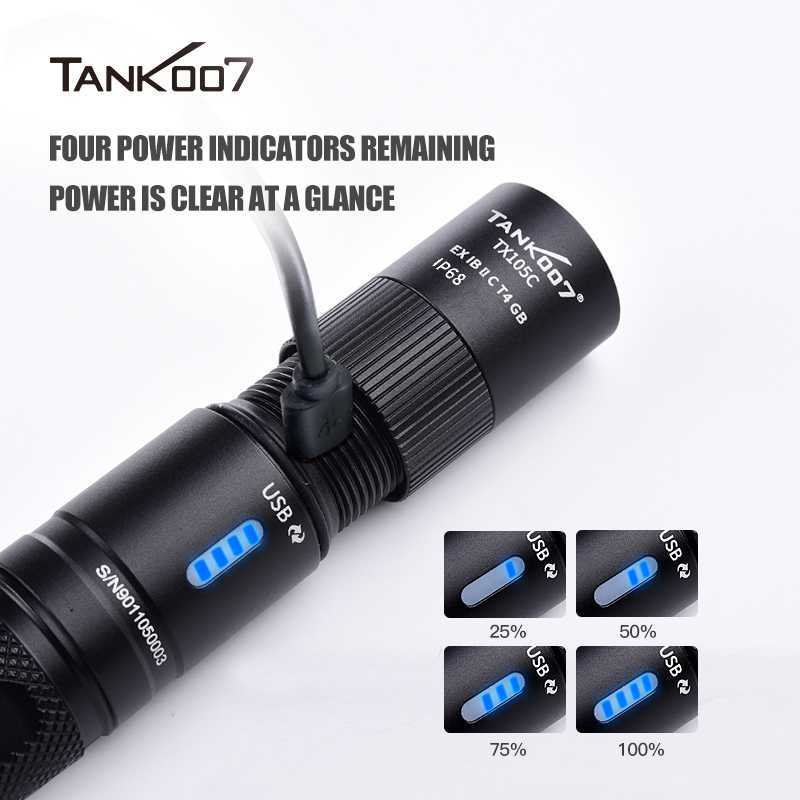

6. Four power indicator lights to display the power status at any time. When the power supply is lower than 3.0V, the indicator light will flash to remind you to charge in time.

7. The shell is made of super-hard aluminum alloy material, which is highly resistant to shock and vibration.

8. Lightweight design, compact size, can be used as a headlamp when wearing a helmet.

9. Protection level: IP68

10. Anti-drop height: 2m

(1) LED specifications:

Brand and model: Original imported American Cree LED

Maximum brightness: 300 lumens

Throwing beam: 200m

(2) Circuit specifications:

Input voltage: 3.0-4.2V

Output level: 3 modes (working light – strong light, long press in any mode to enter flash)

Chip characteristics: Constant current circuit chip which maintains constant brightness

Charging: TYPE-C charging port, charging voltage 5V

(3) BATTERY SPECIFICATIONS:

Power source: 1×18500 specific Li-ion battery, without positive and negative terminals.

Burn Time: >=3 hours (strong light mode); >=6.5 hours (working light mode)

Battery capacity: 1900mAh

(4) SWITCH CONTROL:

First press on tail button, working light mode and tail signal light both turned on;

Second press to switch to strong light mode;

Third press to switch to strong light mode and the brightness is gradually increasing;

Fourth press to turn off signal light and turned off the flashlight;

Or quick press in any mode to turn off the flashlight)

(5) Physical specifications:

Dimensions (cm): 12.8 (length) * 2.4 (body diameter) * 2.2 (head diameter)

Weight (g): 60 (without battery)

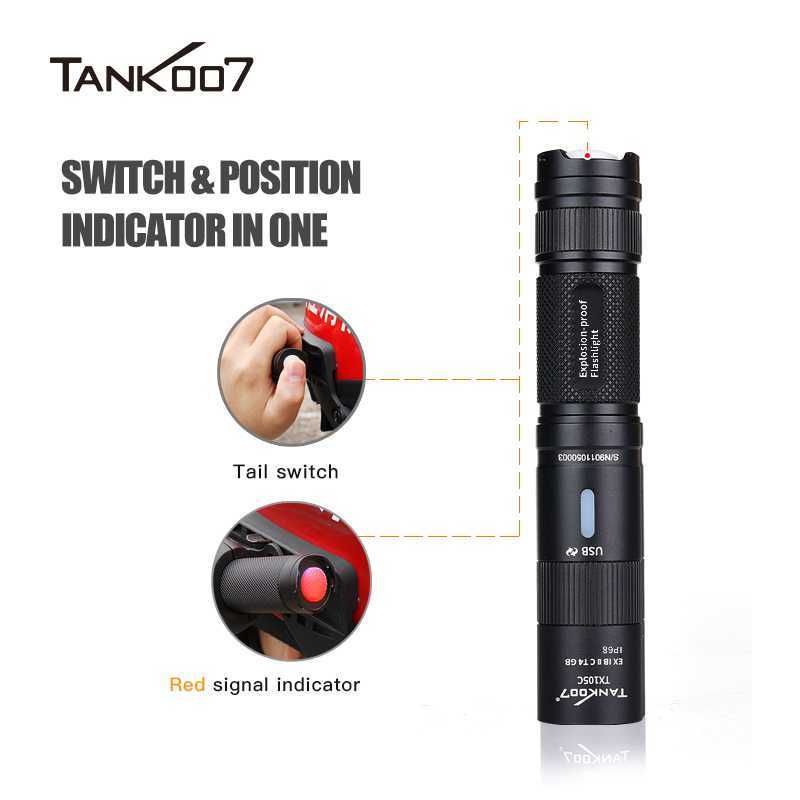

Switch: Tail button switch with signal light

Material: Made of durable aviation-grade aluminum T6061

Reflector: High-temperature vacuum-coated aluminum mirror reflector

Lens: Tempered optical lens

Processing: Anodized

Waterproof: IPX-8

Fall prevention height: 2m

Color: Black

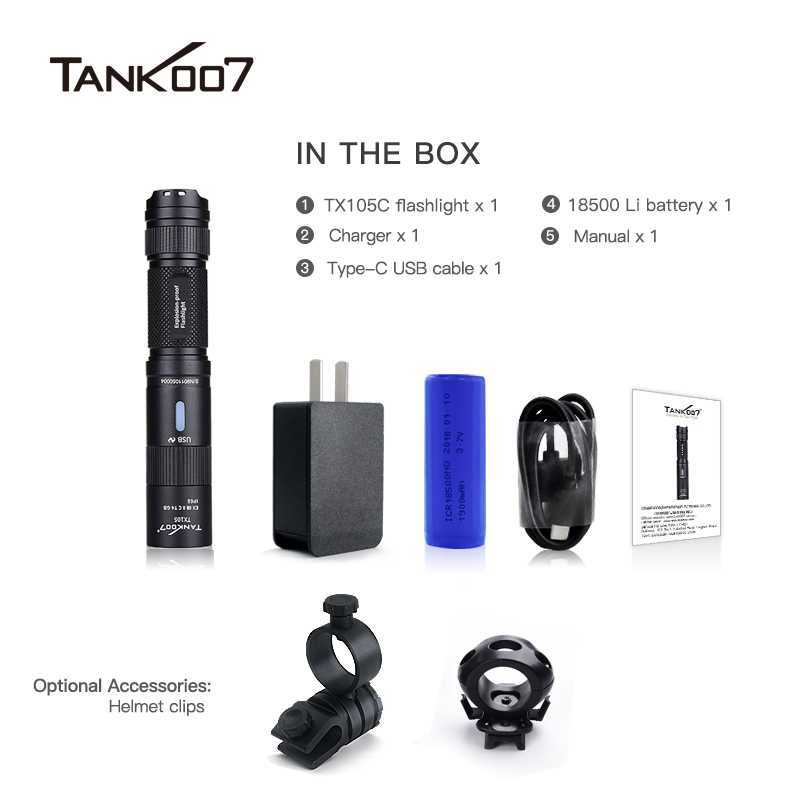

【配件】 ?

標(biāo)配：1×18500專用鋰電池、TYPE-C USB充電線

可選配件：頭盔夾
