Description

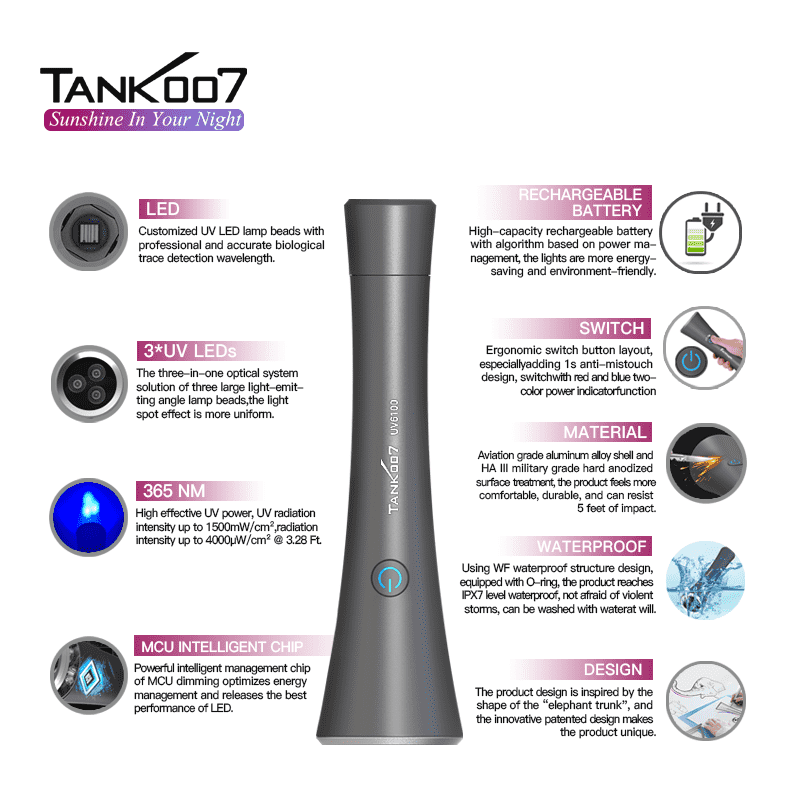

Product advantages and features:

1.Professional and accurate biological trace detection wavelength, wide application range:?High-quality UV LED lamp beads, small half-wave width, real peak wavelength of 365nm, more effective spectrum, less interference and stray light

(Note: Ultraviolet rays are used to detect biological traces mainly through the ultraviolet rays in the UVA band to excite biological macromolecules with conjugated structures to produce fluorescent reactions. UV6100 has tested nearly twenty kinds of UV LEDs with peak wavelengths between 350nm and 400nm, and ten for the application scenarios of other biological traces, the comprehensive performance of the currently used LED is the best)

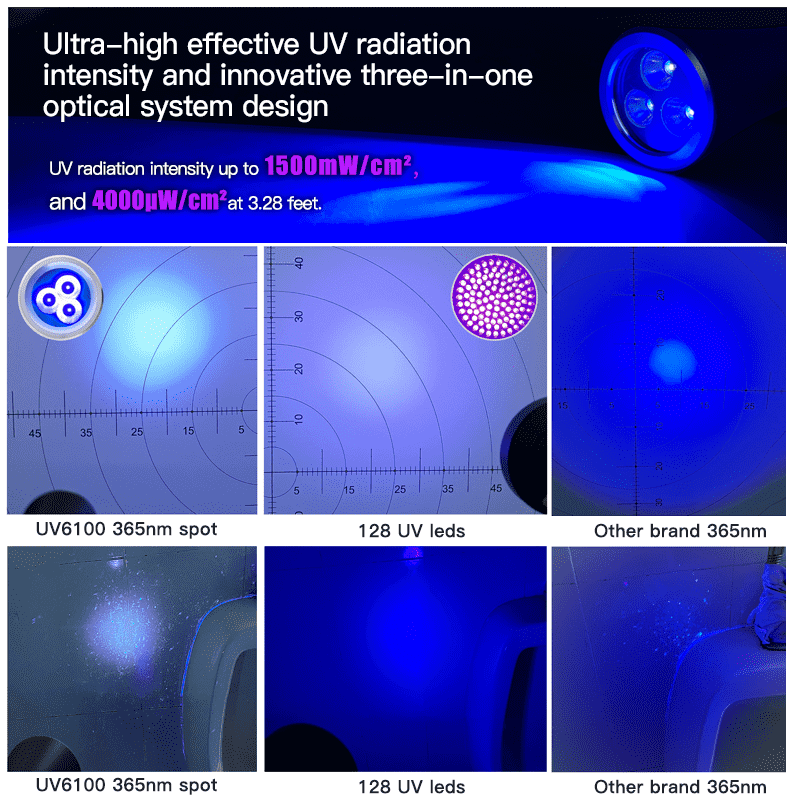

2.High effective UV power and high radiation intensity:?The power of the 3W detection lamp can provide ultra-high UV effective radiation intensity close to?1500mW/cm2, and the radiation intensity at 1 meter is as high as 4mW/cm2.

Note: Lamps with peak wavelengths of 385nm or 395nm appear brighter, that is due to more visible spectrum, not ultraviolet rays with application effects. For biological trace detection applications, it is necessary to focus on the UV effective radiation intensity value.)

3. Three-in-one optical system design, uniform light spot effect, taking into account better fluorescence excitation and larger detection range, suitable for spot effect of trace detection.
4. 4. Single Mode, easy to use:Anti-mistouch design and side-button electronic switch with battery indicator, 18650 rechargeable lithium-ion battery with Micro USB charging port, up to 3 hours of burning time.

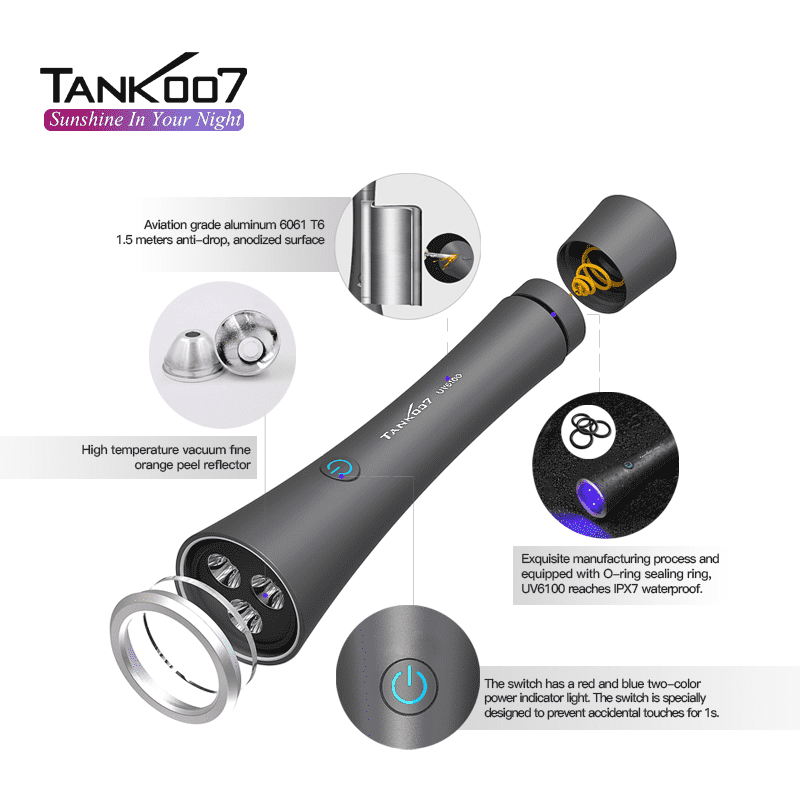

5. 5. High-quality materials, ingenious manufacturing:Aviation grade aluminum 6061 T6, 1.5 meters anti-drop, anodized surface, scratch-resistant and durable, IPX7 waterproof, suitable for various harsh environments

6.Fashionable and simple:?Based on the simulation design and ergonomic design of the elephant trunk, the appearance is beautiful and stylish, and the grip is comfortable;

Specifications

◆LED: 3*1W?365nm UV LED

◆Wavelength: peak wavelength 365nm

◆UV effective distance: 2 meters

◆UV radiation intensity:

100mW/cm2@15cm,

20mW/cm2@50cm,

4mW/cm2@100cm

◆Center?spot diameter:

6cm@15cm,

12cm@50cm,

30cm@100cm

◆cover range:

30cm@15cm，

90cm@50m，

150cm@100cm

◆Power supply: 1 18650 rechargeable Li-ion battery with Micro USB charging port

◆Burning time: 3 hours

◆Mode: single mode

◆Switch: electronic side button switch, long press about 1 second to switch on/off.

◆Indicator function:

Battery power 100%-60% — Blue light on

Battery power 60%-30% — Blue light flashing

Battery power 30%-10% — Red light on

Battery power below 10% — Red light flashing

◆Voltage: 2.8-4.2V

◆Anti-drop: 1.5 meters

◆Waterproof: IPX7

◆physical parameters

Material: aluminum alloy 6061 T6

Surface treatment: Anodized treatment

Size: L150*W21*H41mm

Weight: 117.5g (without battery)

◆Accessories and Packaging：

Flashlight ，1×18650 battery，USB cable
