Introduction

Non-Destructive Testing (NDT) using UV flashlights plays a critical role in detecting surface and subsurface defects in industrial materials without causing damage. This guide provides a step-by-step process for effectively using NDT UV flashlights in fluorescent testing, highlighting best practices, safety measures, and technical details.


1. Understanding Fluorescent Testing in NDT

Fluorescent Testing is a method where materials are inspected under ultraviolet (UV) light after being coated with a fluorescent dye penetrant. When exposed to UV light, these dyes emit bright fluorescent colors, revealing cracks, fractures, or other defects.

Key Advantages:

  • Non-invasive testing method.
  • Accurate detection of surface and near-surface defects.
  • Applicable in various industries (Aerospace, Automotive, Manufacturing).

2. Equipment Required for Fluorescent Testing

EquipmentDescription
NDT UV FlashlightHigh-intensity UV light source (365 nm).
Fluorescent Dye PenetrantLiquid dye for defect highlighting.
Cleaner/RemoverRemoves excess penetrant.
Developer SprayEnhances defect visibility.
Safety GearUV goggles, gloves, protective clothing.

3. Step-by-Step Guide to Using NDT UV Flashlights

Step 1: Surface Preparation

  • Objective: Ensure the surface is clean and free from contaminants.
  • Actions:
    • Use a cleaner to remove oil, grease, and dust.
    • Ensure the surface is dry before applying the dye.

Step 2: Apply Fluorescent Dye Penetrant

  • Objective: Allow the dye to penetrate surface defects.
  • Actions:
    • Evenly apply the fluorescent dye on the surface.
    • Let it sit for the recommended dwell time (usually 10–30 minutes).

Step 3: Remove Excess Penetrant

  • Objective: Avoid background fluorescence that could obscure results.
  • Actions:
    • Wipe off excess penetrant using a clean cloth.
    • Avoid over-cleaning, as it may remove penetrant from defects.

Step 4: Apply Developer

  • Objective: Draw penetrant from defects to the surface.
  • Actions:
    • Spray developer evenly over the surface.
    • Allow sufficient time for the developer to act (5–10 minutes).

Step 5: UV Light Inspection

  • Objective: Identify and evaluate defects under UV light.
  • Actions:
    • Darken the inspection area to reduce ambient light.
    • Turn on the NDT UV flashlight (365 nm wavelength).
    • Scan the surface systematically.
    • Look for bright fluorescent indications that suggest cracks or defects.

Step 6: Record and Analyze Findings

  • Objective: Document defects for reporting and analysis.
  • Actions:
    • Photograph and mark detected defects.
    • Record the type, size, and location of each defect.

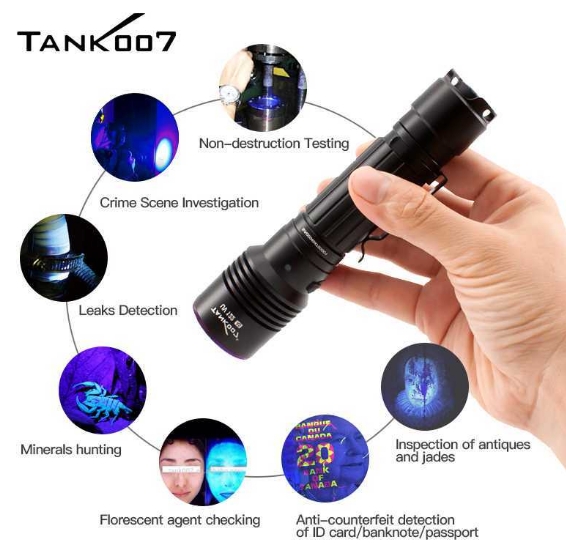

4. Comparison of NDT UV Flashlights vs. Standard Flashlights

FeatureNDT UV FlashlightStandard Flashlight
Wavelength365 nm (optimal for NDT)400+ nm (ineffective)
Light IntensityHigh-intensity UV outputGeneral illumination
Fluorescence DetectionYesNo
ApplicationIndustrial inspectionsGeneral-purpose lighting

5. Safety Precautions

  • Always wear UV-blocking goggles to protect your eyes.
  • Avoid direct skin exposure to UV light for prolonged periods.
  • Ensure proper ventilation when using chemical penetrants.
  • Follow manufacturer guidelines for each piece of equipment.

6. Best Practices for Effective Fluorescent Testing

  • Maintain consistent distance between the flashlight and the inspection surface.
  • Ensure the UV flashlight has stable power output.
  • Regularly calibrate UV equipment for accuracy.
  • Use low ambient light conditions during inspections.

7. Real-World Application Example

Scenario: Aerospace Component Testing

  • Component: Aircraft engine turbine blades
  • Method: Fluorescent penetrant testing with NDT UV flashlight
  • Findings: Micro-cracks detected on critical load-bearing areas
  • Outcome: Defective parts replaced before critical failure

8. Conclusion

Using NDT UV flashlights for fluorescent testing is an essential and highly effective method for identifying surface and near-surface defects. By following this step-by-step guide, inspectors can ensure consistent results, improved safety, and higher reliability in their inspections.
